Product Details:
Payment & Shipping Terms:
|
| Voltage: | 220V- 660V | Product Type: | Blending Machine |
|---|---|---|---|
| Dimension(L*W*H): | Customized | Power (kW): | 1.1 KW |
| Product Name: | Small Model Low Noise 3D Swing Powder Mixer With Short Mixing Time | Material: | Stainless Steel (SUS304,SUS316L) |
| Key Words: | Dry Powder Blending Equipment | Usage: | Dry Guanule Materials,dry Powder |
| High Light: | powder blender mixer,pharmaceutical mixing machine |
||

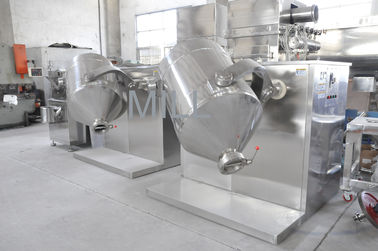

Chemical Industrial 3D lab Dry Powder Mixerfor pharmacy,food, chemical or other relative industries.
Specialty:
High mixing efficiency,
free of dead corner,
even mixing.
Two different type discharge Valve
3 D mixer Technical Data
| Model | Main Structural Dimensions(mm) | Volume | Max loading | Speed | Machine weight | Total power | |||
| L | W1 | W2 | H | L | KG | Rpm/min | Kg | KW | |
| JB-50 | 1000 | 850 | 1400 | 1200 | 50 | 25 | 3--12 | 250 | 1.1 |
| JB-100 | 1250 | 1250 | 1775 | 1600 | 100 | 50 | 3--12 | 600 | 2.2 |
| JB-200 | 1400 | 1450 | 1800 | 1750 | 200 | 100 | 3--12 | 900 | 2.2 |
| JB-400 | 1650 | 1600 | 2235 | 1950 | 400 | 200 | 3--12 | 1200 | 4 |
| JB-600 | 1750 | 1600 | 2435 | 2160 | 600 | 300 | 3--12 | 1600 | 5.5 |
| JB-800 | 2000 | 1900 | 2690 | 2550 | 800 | 400 | 3--12 | 2000 | 7.5 |
| JB-1000 | 2100 | 1950 | 2805 | 2640 | 1000 | 500 | 3--10 | 2200 | 11 |
| JB-1200 | 2200 | 2200 | 2950 | 2750 | 1200 | 600 | 3--8 | 2500 | 11 |
| JB-1500 | 2250 | 2500 | 3225 | 2930 | 1500 | 750 | 3--8 | 2900 | 15 |
FAQ
If you want to send inquriy to me about our JB V type mixer, could you please tell me?
1) What material you want to mix?
2) What capacity you expect ? (kg/batch or litre/batch )
3) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...
(We only provide 3P, because our machines are all for industrial use,not for family.)
4) What material of the equipment you want? usually we adopt all stainless steel 304.
You can also choose A all carbon steel
B contact part SS304, other parts carbon steel
C all SS 316
D contact part SS 316, other parts SS 304
Then our communication will be more efficient.
Our Service
* Inquiry and consulting support with 24 hours * Instructing how to install the machine, insutructing how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our Factory.
