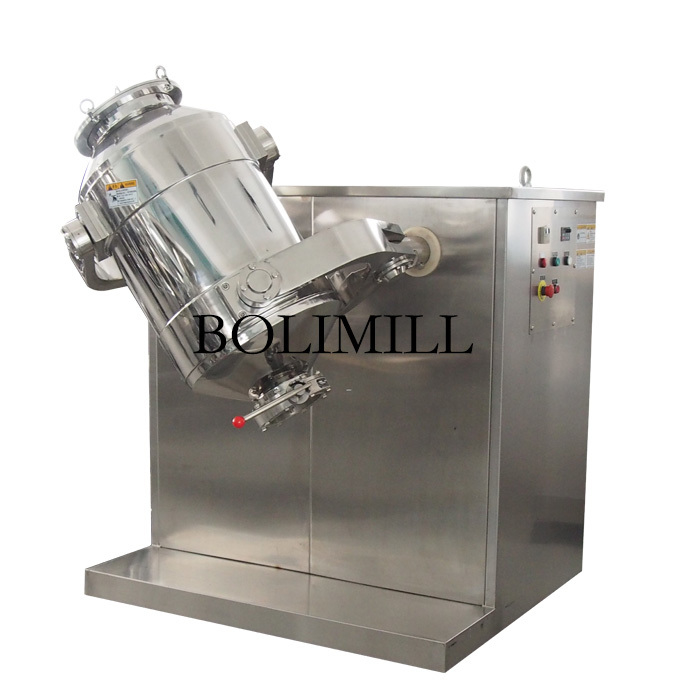

3D Swing Powder Mixer 100L-4000L Stainless Steel Industrial Blender

Brand Name:	BOLIMILL
MOQ:	1
Price:	$2,600

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

CE,ISO

Mixer Type:

Agitator

Material Processed:

Plastics, Chemicals, Food

Weight:

250 Kg

Material:

SUS304, SUS304L, SUS316, SUS316L

Voltage:

220V, 380V, 400V, 415V

Power:

1.1 KW

Capacity:

100L, 180-4000L

Speed:

90-2000rpm

Machine Type:

V Mixing Powder

Usage:

Dry Granule Materials, Dry Powder

Max Loading:

25-750 Kg

Machine Weight:

250-2900 Kg

Total Power:

1.1-15 KW

Core Components:

Motor, Gear, Pressure Vessel, Gearbox, Pump, PLC, Bearing, Engine

Dimension:

Customized

Highlight:

stainless steel powder mixer

industrial powder blending machine

large capacity swing mixer

Product Description

3D Motion Powder Pigment Blender Machine Powder Mixing Machine

Product Overview

Industrial-grade 3D swing powder mixer designed for efficient blending of dry powders and granules in chemical, food, and pharmaceutical applications.

Key Specifications

Attribute	Value
Mixer Type	Agitator
Materials Processed	Plastics, Chemicals, Food
Construction Materials	SUS304, SUS304L, SUS316, SUS316L
Capacity Range	100L to 4000L
Power	1.1 kW to 15 kW (model dependent)
Speed Range	90-2000 rpm
Voltage Options	220V, 380V, 400V, 415V (customizable)
Warranty	1 Year

Key Features

High mixing efficiency with no dead corners
Uniform blending results for consistent product quality
Low noise operation for improved working environment
Short mixing time increases productivity
Stainless steel construction for durability and hygiene
Customizable dimensions and configurations available

Technical Specifications

Model	Dimensions (mm)	Volume (L)	Max Loading (kg)	Speed (rpm)	Weight (kg)	Power (kW)
JB-50	1000×850×1400	50	25	3-12	250	1.1
JB-100	1250×1250×1775	100	50	3-12	600	2.2
JB-200	1400×1450×1800	200	100	3-12	900	2.2
JB-400	1650×1600×2235	400	200	3-12	1200	4
JB-600	1750×1600×2435	600	300	3-12	1600	5.5
JB-800	2000×1900×2690	800	400	3-12	2000	7.5
JB-1000	2100×1950×2805	1000	500	3-10	2200	11
JB-1200	2200×2200×2950	1200	600	3-8	2500	11
JB-1500	2250×2500×3225	1500	750	3-8	2900	15

Inquiry Information

For efficient communication when requesting a quote, please provide:

Material(s) to be mixed
Required capacity (kg/batch or liter/batch)
Voltage requirements (380V 50Hz 3p, 440V 60Hz 3p, 220V, etc.)
Preferred construction material:
- All stainless steel 304
- All carbon steel
- Contact parts SS304/other parts carbon steel
- All SS316
- Contact parts SS316/other parts SS304
