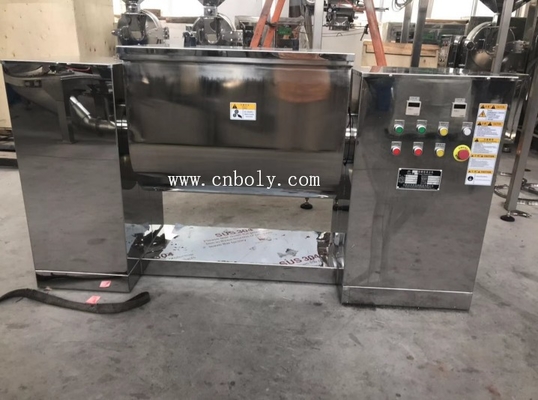

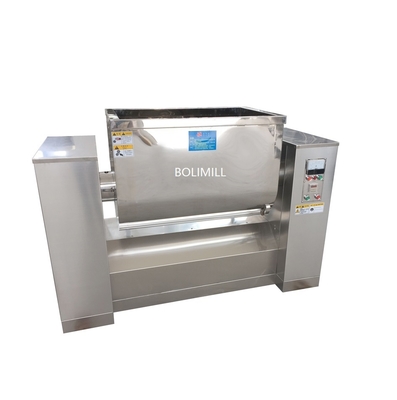

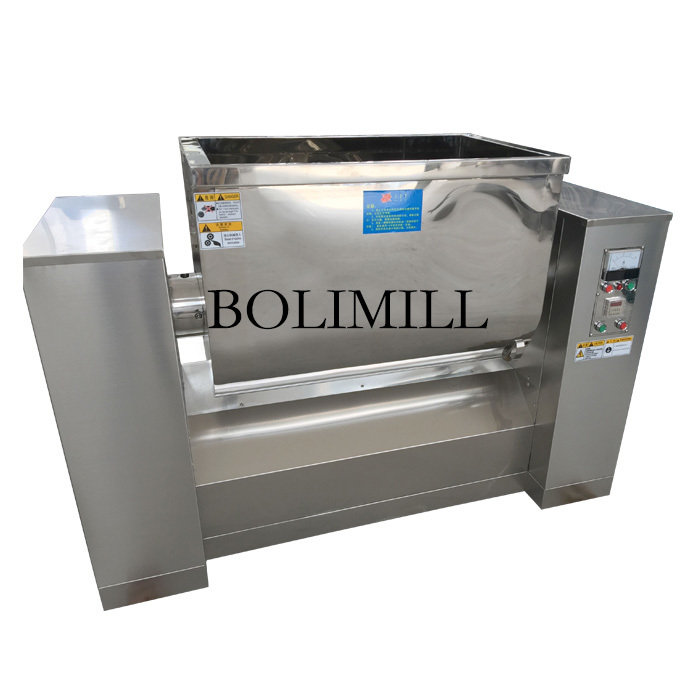

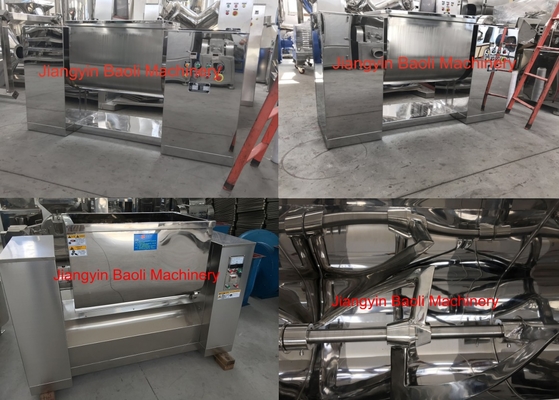

Industrial Trough Mixing Machine for Powder and Liquid SUS304

Brand Name:	BOLIMILL
MOQ:	1
Price:	$2,700

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO CE

Mixer Type:

Paddle

Material Processed:

Plastics, Chemicals, Food

Weight:

220 Kg

Material:

SS304

Voltage:

220-660V

Power:

2.2 KW

Capacity:

100L

Max Loading:

50 KG

Speed:

24 Rpm/min

Length:

1400 Mm

Width:

580 Mm

Height:

1000 Mm

Core Components:

Motor, Gear, Pressure Vessel, Gearbox, Pump, PLC, Bearing, Engine

Additional Capabilities:

Milling

Working Method:

S Shape Blade Turns Materials

Highlight:

industrial trough mixing machine SUS304

powder and liquid mixing machine

stainless steel powder mixer

Product Description

Breaded Granule Mixing Machine Horizontal Trough Mixing Machine

Product Specifications

Attribute	Value
Mixer Type	Paddle
Material Processed	Plastics, Chemicals, Food
Weight	220 kg
Material Options	SUS304, SUS304L, SUS316, SUS316L
Product Type	FERTILIZER
Additional Capabilities	Milling
Voltage	220-660V
Power	2.2 kW
Warranty	1 Year
Capacity	100L
Core Components	Motor, Gear, Pressure vessel, Gearbox, Pump, PLC, Bearing, Engine

Product Description

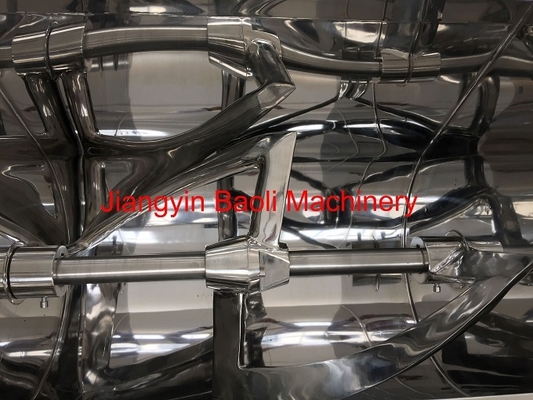

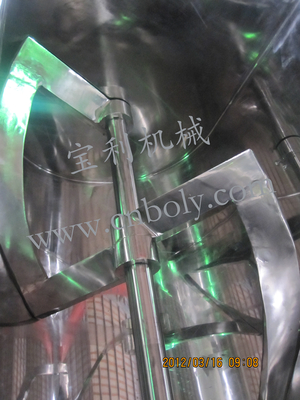

This horizontal trough mixing machine is designed for efficient blending of powdered or paste materials in industrial applications. The S-shaped blades provide thorough mixing by moving materials in both directions.

Applications

Ideal for mixing:

Liquids with suspended solids
Powder materials
Chemical compounds
Food ingredients

Technical Specifications

Model	L (mm)	W (mm)	H (mm)	Volume (L)	Max Loading (KG)	Speed (Rpm/min)	Machine Weight (Kg)
JB-100	1400	580	1000	100	50	24	220
JB-150	2000	630	1150	150	75	24	300
JB-200	2300	750	1250	200	100	24	400
JB-300	2700	850	1350	300	150	24	600
JB-500	2750	800	1400	500	250	24	800
JB-1000	3350	1100	1550	1000	500	24	1400
