Horizontal Ribbon Powder Mixer for Chemicals and Food 300kg Capacity

Large Image : Horizontal Ribbon Powder Mixer for Chemicals and Food 300kg Capacity

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	BOLIMILL

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$8,900

Contact Now

Detailed Product Description

Mixer Type:	Ribbon	Material Processed:	Plastics, Chemicals, Food
Weight:	600 Kg	Material:	SUS304, SUS304L, SUS316, SUS316L, Ti, SUS304/316
Voltage:	220-480V	Power:	4 KW
Capacity:	300, 180~2400kg/shift	Motor Power:	4-22kw
Speed:	33-65rpm	Model Dimensions:	L1: 1915mm, W2: 850mm, H1: 1000mm, H2: 50mm
Volume:	300	Max Loading:	180 KG
Machine Weight:	600 KG	Total Power:	4 KW
Core Components:	Motor, Gear, Pressure Vessel, Gearbox, Pump, PLC, Bearing, Engine
Highlight:	horizontal ribbon powder mixer , chemical food powder mixer 300kg , powder mixing machine with warranty

Horizontal Powder Ribbon Type Mixer

Professional mixing equipment designed for chemical and food industries, featuring efficient ribbon mixing technology with various material compatibility.

Product Specifications

Attribute	Value
Mixer Type	Ribbon
Material Processed	Plastics, Chemicals, Food
Weight	600 kg
Construction Materials	SUS304, SUS304L, SUS316, SUS316L, Ti, SUS304/316
Power	4 kW (4-22kW range available)
Speed	33-65 rpm
Capacity	300, 180~2400kg/shift
Voltage	220-480V
Warranty	1 year
Certifications	CE, ISO, SGS, BV

Key Features

Ribbon mixer design for efficient powder and liquid mixing
CE, ISO, SGS, BV certified for quality assurance
Wide application in food, agriculture, dyestuff, and chemical industries

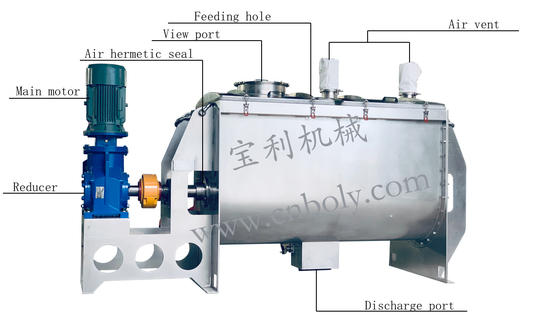

U-shaped container with screw belt stirring blades for optimal material flow

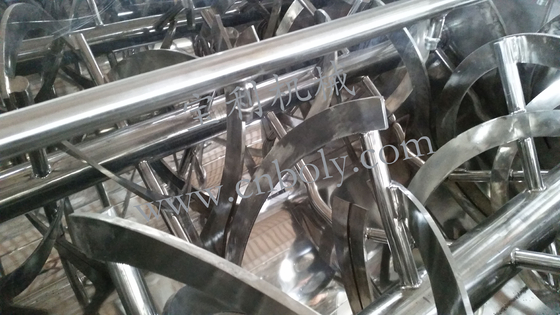

Double or triple layer spiral blades create efficient mixing vortices
Optional heating or cooling jackets available for specialized processes
Reducer direct connection for simple structure and reliable operation

Working Principle

The ribbon mixer features a U-shaped container with specially designed screw belt stirring blades. The outer spiral collects materials from both sides to the center, while the inner spiral conveys materials from the center to both sides, creating a continuous mixing motion that ensures thorough blending with minimal power consumption.

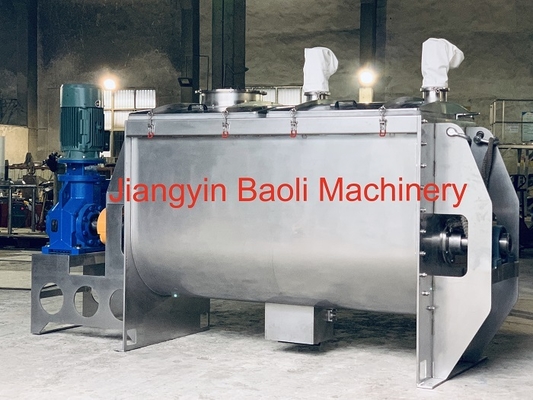

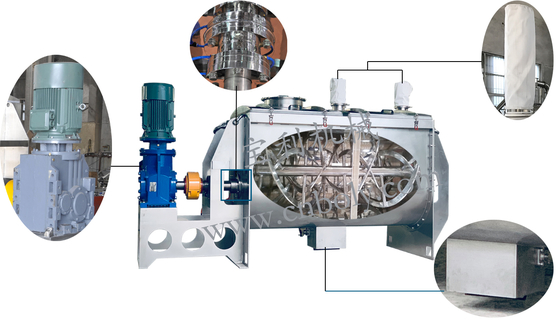

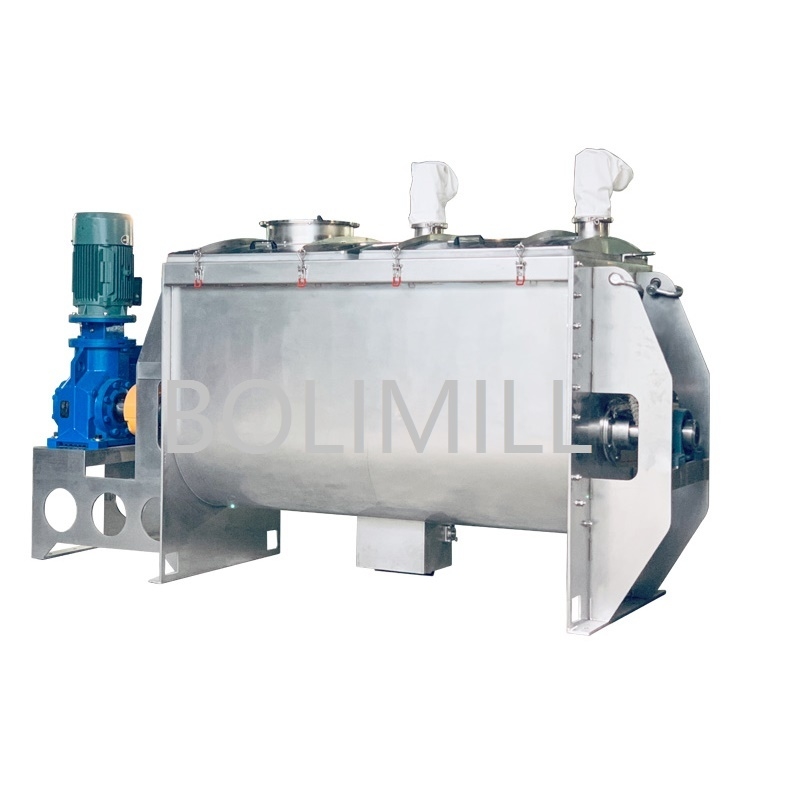

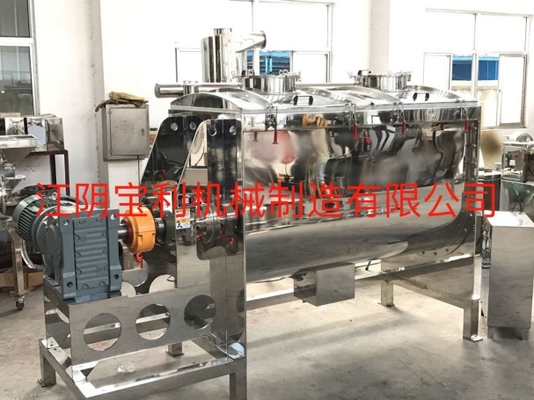

Product Images

Technical Specifications

Model	L1 (mm)	W2 (mm)	H1 (mm)	H2 (mm)	Volume	Max Loading (kg)	Speed (RPM)	Weight (kg)	Power (kW)
JB-300	1915	850	1000	50	300	180	65	600	4
JB-500	2510	1000	1275	50	500	300	65	900	7.5
JB-1000	2980	1120	1380	50	1000	600	48	1300	11
JB-1500	3160	1420	1570	50	1500	900	48	1600	15
JB-2000	3360	1450	1625	50	2000	1200	35	2000	15
