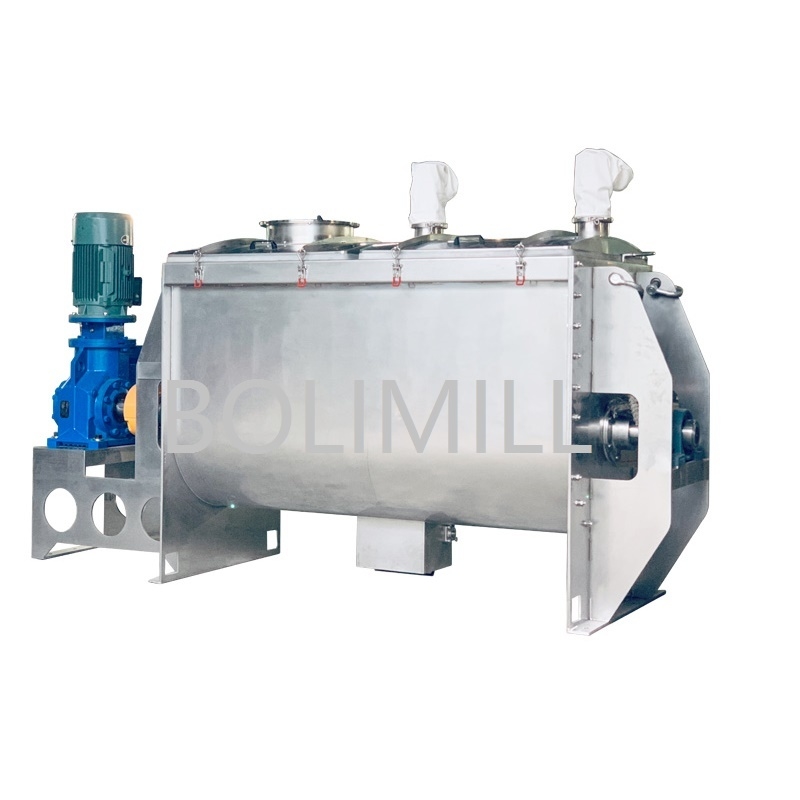

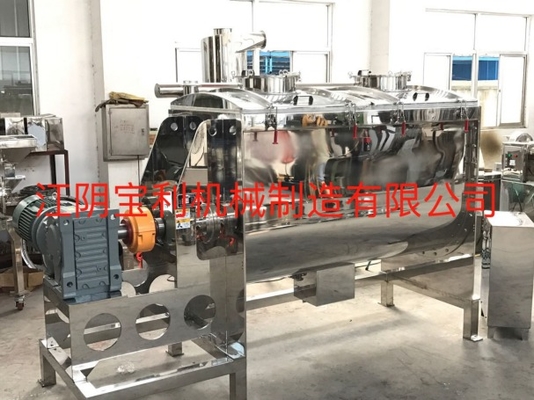

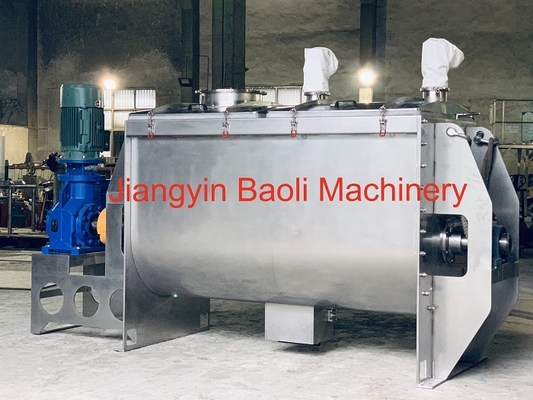

Industrial Ribbon Blender for Powder Mixing 300L-30000L Capacity

Large Image : Industrial Ribbon Blender for Powder Mixing 300L-30000L Capacity

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Jinbao

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$8,900

Contact Now

Detailed Product Description

Mixer Type:	Ribbon	Material Processed:	Plastics, Chemicals, Food
Weight:	680 Kg	Construction Material:	SUS304, SUS304L, SUS316, SUS316L, Ti
Voltage:	By Customer	Dimensions:	33602000104014501625*50 Mm
Power:	4 KW	Capacity:	300L-30000L
Max Loading:	180kg-18000kg	Speed:	12-65rpm
Machine Weight:	600-14000kg	Total Power:	4-110kw
Discharge Type:	Pneumatic Valve Control	Main Shaft Seal:	Air-purged Seal, Stuffing Seal, Mechanical Seal
Voltage And Hz:	380V 3Phases 50hz
Highlight:	industrial ribbon blender powder mixing , powder mixing machine 30000L capacity , ribbon blender with large capacity

Efficiency Horizontal Spiral Mixing Machine Powder Horizontal Ribbon Blender Industrial Blender

Product Specifications

Attribute	Value
Mixer Type	Ribbon
Material Processed	Plastics, Chemicals, Food
Weight (kg)	680
Material	SUS304, SUS304L, SUS316, SUS316L, Ti
Product Type	Detergent Powder
Additional Capabilities	COATING
Voltage	by customer
Dimension (LWH)	33602000104014501625*50
Power (kW)	4 kW
Warranty	1YEAR
Key Selling Points	Long Service Life
Machinery Test Report	Provided
Video Outgoing-Inspection	Provided
Core Components	motor, Gear, Pressure vessel, Gearbox, Pump, PLC, Other, Bearing, Engine
Capacity	300, 300L-30000L
Application	Flavouring powder mixing uniform, Powder
Max Loading	180kg-18000kg
Speed	12-65rpm
Machine Weight	600-14000kg
Total Power	4-110kw

Product Description

The JB series Ribbon Mixer is a high-efficiency industrial blender designed for solid-solid (powder material) and solid-liquid (powder material & fluidity material) mixing in chemical and food industries.

Key Features

Stainless steel 304 construction for durability
Pneumatic valve controlled discharge system
Capable of both powder and wet material mixing

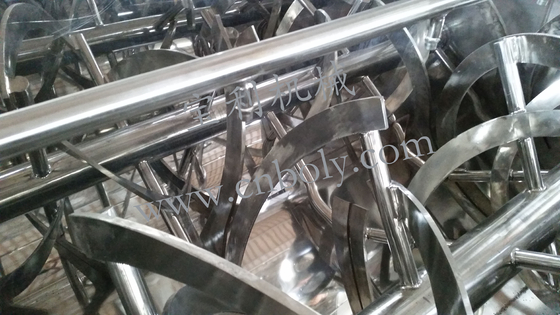

Dual-layer spiral ribbon design for optimal material circulation
Inner ribbon moves materials outwards while external ribbon moves materials inwards
Circumferential ribbon movement ensures efficient mixing in minimal time

Technical Specifications

Model	Main Dimensions (mm)	Volume	Max Loading	Speed	Machine Weight	Total Power
JB-300	1915×850×1000×50	300	180kg	65rpm	600kg	4kw
JB-500	2510×1000×1275×50	500	300kg	65rpm	900kg	7.5kw
JB-1000	2980×1120×1380×50	1000	600kg	48rpm	1300kg	11kw
JB-1500	3160×1420×1570×50	1500	900kg	48rpm	1600kg	15kw
JB-2000	3360×1450×1625×50	2000	1200kg	35rpm	2000kg	15kw

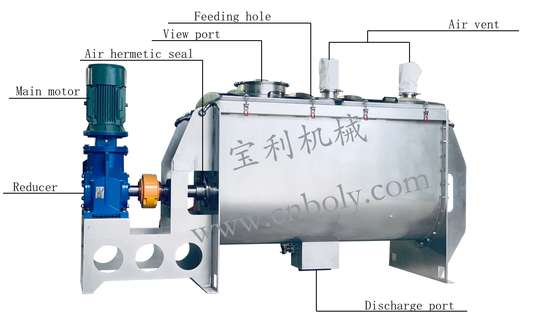

Standard Configuration

Drive Unit: Cycloid reducer or gear reducer
Motor brand: Siemens (made in China)
Gear box brand: Chinese Famous brand (Huaxing)
Bearings: Chinese Famous brand
Discharging valve: pneumatic flap valve (no dead angle when mixing)
Main Shaft Seal: Air-purged seal and stuffing seal for powder material; Mechanical seal for liquid material
Voltage and Hz: 380V 3Phases 50hz or as required
Top Cover: Fully openable for cleaning with safety grid and limit switch
Normal duty type: start the mixer first and then load the material
Surface treatment: painting, polishing, passivation, blasting, acid-picking
Packing: pallet or wooden case

Additional Configuration Options

Worldwide famous drive unit brands: SEW, ABB, Siemens
Premium bearings: NSK/TNT
Heating/cooling jacket: water, oil, steam as medium
Spraying system
Heavy duty type (loading material before starting)
Custom platform design
Complete mixing system including packing machine, bucket elevator, sieve, screw conveyor
High speed choppers for enhanced mixing effect
Custom solutions for specific requirements

Technical Selection Parameters

Powder name and characteristics (mesh and density)
Output per batch
Material preference: 304/316L stainless steel or carbon steel
Electrical environment at installation site

Customization Requirements

Special customization needed for:

Materials containing agglomerates larger than 5mm
Bulk density exceeding 3kg/l
Materials sensitive to moisture requiring vacuum/negative pressure
Applications requiring compressed air in mixer barrel
Materials with high friction coefficient needing wear-resistant treatment
Materials requiring non-metal contact during mixing
Applications requiring heating up to 200°C
Heavy duty operation (loading before starting)

Certifications

Our Services

Pre-Sales Service

24/7 inquiry and consulting support
Sample testing assistance
Factory visit arrangements

After-Sales Service

Installation and operation guidance
Overseas engineer support

About Our Company

Jiangyin Baoli Machinery Manufacturing Co.,Ltd is a manufacturing-oriented enterprise founded in 2004, specializing in crushing, mixing, conveying, sifting, and drying equipment for global markets.
