Industrial 1000L Ribbon Mixer for Powder Chemicals Food

Brand Name:	BOLIMILL
MOQ:	1
Price:	$8,900

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

CE&ISO

Mixer Type:

Ribbon

Material Processed:

Plastics, Chemicals, Food

Weight:

600 Kg

Material:

SUS304, SUS304L, SUS316, SUS316L, Ti, SUS304/316

Voltage:

220-480V

Power:

4 KW

Capacity:

300, 180~2400kg/shift

Motor Power:

4-22kw

Speed:

33-65rpm

Model Dimensions:

L1: 1915mm, W2: 850mm, H1: 1000mm, H2: 50mm

Max Loading:

180 Kg

Machine Weight:

600 Kg

Total Power:

4 KW

Blade Type:

Double Or Triple Layers

Structural Design:

U-shaped Container With Spiral Blades

Highlight:

1000L ribbon powder mixer

industrial chemical ribbon mixer

food-grade powder mixing machine

Product Description

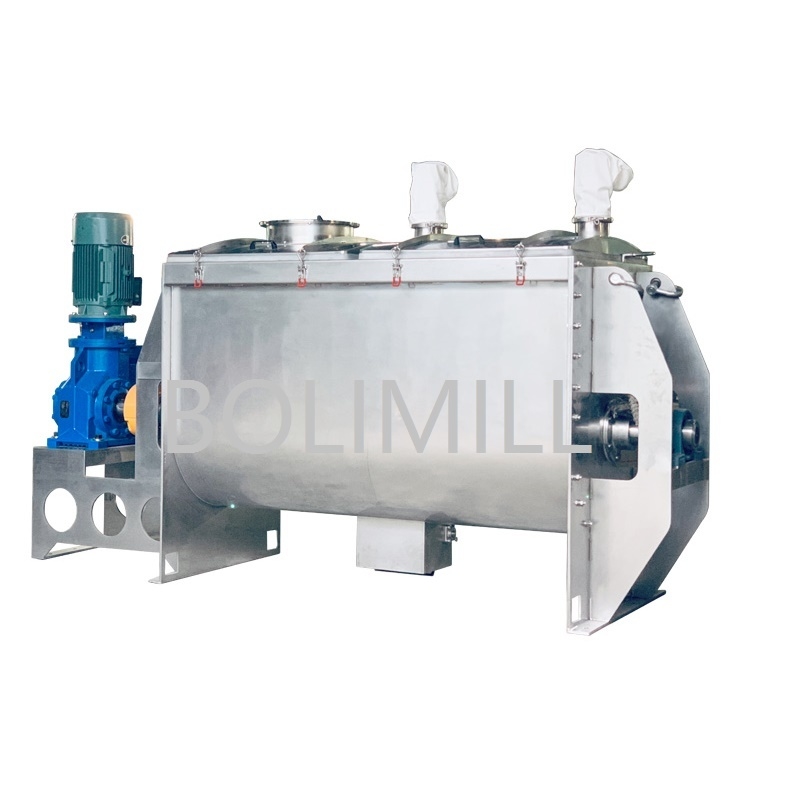

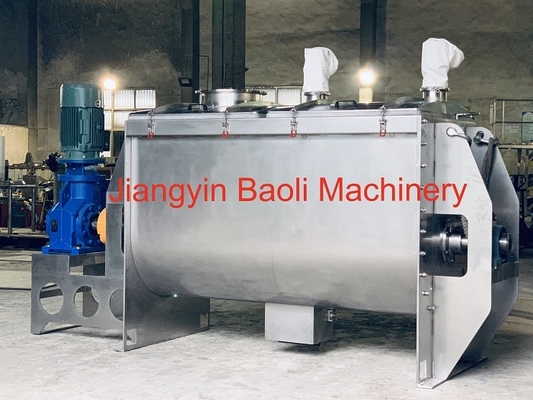

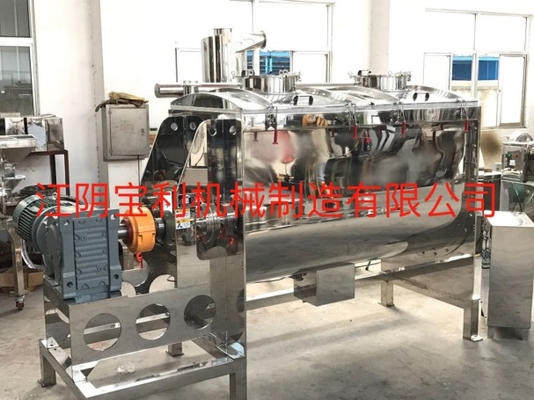

Industrial Batch Horizontal 1000L Ribbon Mixer

Professional powder mixing machine and ribbon blender designed for industrial applications in chemicals, food, and building materials industries.

Product Specifications

Attribute	Value
Mixer Type	Ribbon
Material Processed	Plastics, Chemicals, Food
Weight	600 kg
Construction Material	SUS304, SUS304L, SUS316, SUS316L, Ti, SUS304/316
Voltage	220-480V
Power	4 kW
Capacity	300, 180~2400kg/shift
Motor	4-22kw
Speed	33-65rpm
Warranty	1 year

Key Features

CE, ISO, SGS, BV certified for quality assurance
Versatile application for powder, liquid, small fiber, and low-viscosity paste mixing

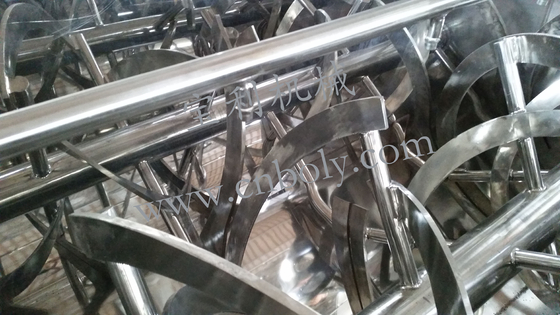

U-shaped container with double or triple layer spiral blades for efficient mixing
Optional heating or cooling jackets available for specialized process requirements
Direct connection reducer for simple structure and reliable operation
Competitive pricing with high performance-to-cost ratio

Working Principle

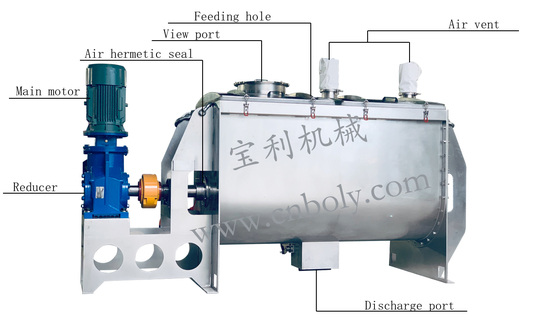

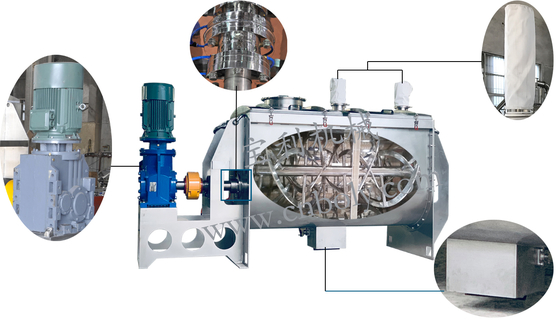

The ribbon mixer features a U-shaped container with screw belt stirring blades and transmission components. The outer spiral collects materials from both sides to the center while the inner spiral conveys materials from the center to both sides, creating a highly efficient mixing environment with minimal power consumption.

Technical Specifications

Model	L1 (mm)	W2 (mm)	H1 (mm)	H2 (mm)	Volume	Max Loading (KG)	Speed (RPM)	Weight (KG)	Power (KW)
JB-300	1915	850	1000	50	300	180	65	600	4
JB-500	2510	1000	1275	50	500	300	65	900	7.5
JB-1000	2980	1120	1380	50	1000	600	48	1300	11
JB-1500	3160	1420	1570	50	1500	900	48	1600	15
JB-2000	3360	1450	1625	50	2000	1200	35	2000	15
