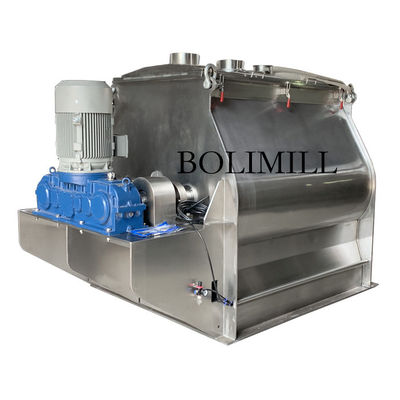

Food Granules 110KW 60prm Paddle Mixer Machine

Food Granules 110KW 60prm Paddle Mixer Machine
Food Granules 110KW 60prm Paddle Mixer Machine Food Granules 110KW 60prm Paddle Mixer Machine

Large Image :  Food Granules 110KW 60prm Paddle Mixer Machine

Product Details:

Place of Origin: Jiangsu, China
Brand Name: BOLIMILL
Certification: CE,ISO
Model Number: JB-300/500/1000/2000/3000/4000/5000

Payment & Shipping Terms:

Minimum Order Quantity: >=1 Sets
Price: Negotiable
Packaging Details: wooden packing
Supply Ability: 36 Set/Sets per Month
Detailed Product Description
Application: Powder, Medicine Processing, Chemicals Processing, Food Processing Range Of Spindle Speed(r.p.m): 16 - 60
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service Material: Stainless Steel
Power(W): 6-110KW Warranty: 1 Year
Port: Shanghai China Voltage: 220-660V
High Light:

110kw paddle mixer machine


60prm paddle mixer machine


60prm Food Granules mixer machine

Seasoning Flavoring Powder Food Granules Double Shafts Paddle Mixer Machine

Working principle and structure

The double shaft paddle mixer makes full use of the convective mixing principle, that is, the material is thrown up in the mixer to form a flowing layer, which produces instantaneous weight loss and achieves the best mixing effect. The mixing process is shown in the figure. In the field of flow layer, the material overcomes the centrifugal force at a certain circumferential speed, and moves from a to B under the action of a blade with a specific angle. At the same time, the moving blade in the machine sends it to C, and the blade with the same specific angle sends it to D, and then returns from D to a; Moreover, under the action of specific overlapped blades, the material moves axially to realize mixing in all directions, forming the best random motion state.

In order to reduce the replacement cost of vulnerable parts, the blades can be made into two pieces, and a movable blade is placed on the blade base to directly replace the worn blades, which is economical and fast; The discharge form is generally pneumatic (manual) flap valve, the arc valve is closely embedded in the cylinder, flush with the inner wall of the cylinder, without material accumulation and mixing dead angle phenomenon; the standard type has large open door and small open door, the large open door is opened to the cylinder edge, and the discharging is clean and quick with little residue.


Technical Parameters

Model Size Volume Capacity Speed Weight Power
L W H L KG/Batch Rpm/min T KW
JB-300 1640 1000 1350 300 150 60 800 6
JB-600 1915 1200 1560 600 300 43 1000 11
JB-1000 2510 1400 1800 1000 500 43 1500 15
JB-2000 2980 1700 1900 2000 1000 43 2500 22
JB-3000 3160 1800 1950 3000 1500 43 2900 30
JB-4000 3360 1900 2000 4000 2000 35 4100 37
JB-6000 3640 2150 2350 6000 3000 35 6500 44
JB-8000 4100 2400 2500 8000 4000 29 7500 60
JB-10000 4320 2600 2600 10000 5000 29 8600 60
JB-12000 5000 2650 2700 12000 6000 22 9800 74
JB-15000 5000 2700 2800 15000 7500 22 11600 90
JB-20000 5600 2800 2850 20000 10000 19 16400 90
JB-30000 5800 2900 2900 30000 15000 16 23000 110

Detail Pictures

Food Granules 110KW 60prm Paddle Mixer Machine 0

Food Granules 110KW 60prm Paddle Mixer Machine 1

Food Granules 110KW 60prm Paddle Mixer Machine 2

Our service

Food Granules 110KW 60prm Paddle Mixer Machine 3


Our company locates at Wuxi city, very near Shanghai City and it only takes 30 minutes to get to our city by train from Shanghai.

1) We are golden supplier on alibaba with a history of
more than 10 years.

And our factory’s history is
more than 15 years.

2) We have
CE certificate, ISO,BV...etc.

3) Each year,we takes part in a lot of Expos ,for example:
FIC, CPHI, API...etc


If you want to send inquriy to me about Stainless Steel Double Shaft Paddle Mixer Machine from China, could you please tell me?

1) What material you want to mix? What kind of feeding method for feed material ?

2) What capacity you expect by mixing machine? (kg/h)

3 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...

(We only provide 3P, because our machines are all for industrial use,not for family.)

4) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.

Then our communication will be more efficient.
