Chili Flour Milling GMP Powder Grinder Machine

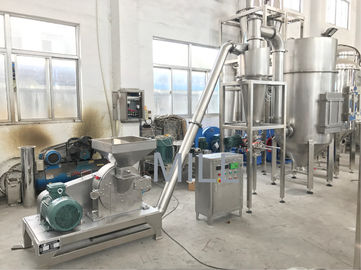

This machine is made up of crusher, cyclone separator, pulse dustevacuator box and blower fan etc.
By means of relative motion between flexible and fixed fluted discs, material is crushed through impact and

friction of the teeth and impact among the material.  The crushed material flows into the cyclone separator by

the gravitation of blower and rotating centrifugal force, then discharges through gate blower. Dust comes into

the pulse dust evacuator box, filtered and recycled by the filter cylinder. The crushing size can be adjusted by

the screen.

  Designed according to GMP standard and wholly made of stainless steel, this machine has no flying dust

during production, and can improve the utilization rate of material and reduce the cost of enterprise, thus

reaching the international advanced level.

1) Simple structure ,easy in installation and maintenance.
2) Adopting advanced world famous brand motor ,electric parts,bearing and operation parts.
3) No dust during production, and dust can be collected in dust collecting box.
4)No need screen, particle size can be changed by change speed; particle size varies from 12 to 120 mesh.
5) Around mill chamber and bearing, there is water-cooling jacket to cool the machine.
