Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Warranty: | 1 Year |
|---|---|---|---|
| After-sales Service Provided: | Field Installation, Commissioning And Training, Engineers Available To Service Machinery Overseas | Voltage: | All Countries Are OK |
| Type: | Pulverizer | Product Type: | Tablet Crusher |
| Dimension(L*W*H): | Customizable | Application: | Medicine Processing, Chemicals Processing, Food Processing |
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Restaurant, Retail, Food Shop, Printing Shops, Food & Beverage Shops | Key Selling Points: | Long Service Life |
| Output (kg/h): | 100 - 300 | Weight (KG): | 220 KG |
| After Warranty Service: | Video Technical Support, No Service, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | None |
| Showroom Location: | None | Material: | SS 304 / 316 |
| MOQ: | 1 Set | Product Name: | Best Selling Automatic Universal Grinder Machine |
| Weight: | Machine Configuration | Power(W): | 4-75kw |
| Port: | SHANGHAI CHINA | ||
| High Light: | dry chilli grinding machine,ultra fine powder grinder |
||

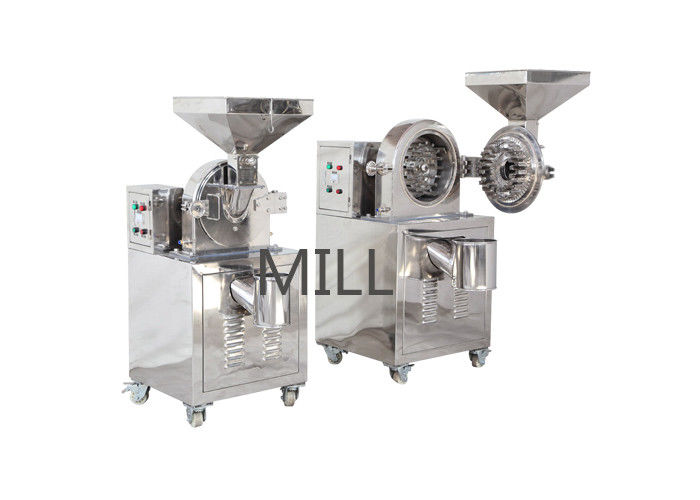

Universal Grinder Machine/ Grinding Mill
JB saccharin pulverizer Specialty:
Since it features a simple structure, firm and stable operation and good crushing effect,
the crushed material can be discharged directly from the grinding chamber of the host machine and the desired granule size can be obtained by installing screens with different apertures.
Besides, the whole machine is made of stainless steel.
The inner surface of the enclosure becomes smooth through processing, thus changing the powder residual phenomenon due to the coarse inner surface of the previous models.
As a result, the production of sugar can better conform to the state standard and the GMP requirement.
This machine has a very good effect for grain/sugar/rice/chili/herbal.... powder.
technical data:
| Model | Main Structural Dimensions(mm) | Capacity | Input Particle Size | Output Particle Size | Machine weight | Speed | Total power | ||
| L | W | H | Kg/H | mm | mesh | Kg | Rpm/min | KW | |
| JB-20 | 650 | 820 | 1500 | 20-150 | <6 | 12-120 | 230 | 4650 | 4 |
| JB-30 | 700 | 900 | 1650 | 30-350 | <10 | 12-120 | 330 | 3800 | 7.5 |
| JB-40 | 750 | 1000 | 1750 | 50-450 | <12 | 12-120 | 430 | 3400 | 11 |
| JB-50 | 850 | 1150 | 1900 | 80-550 | <15 | 12-120 | 700 | 2900 | 18.5 |
| JB-60 | 950 | 1250 | 2150 | 100-800 | <15 | 12-120 | 900 | 2300 | 22 |
| JB-80 | 1100 | 1400 | 2250 | 120-1000 | <20 | 12-120 | 1200 | 1800 | 30 |
| JB-100 | 1300 | 1500 | 2400 | 150-1500 | <20 | 12-120 | 1800 | 1400 | 45 |
If you have a very high standard of the factroy, JB universal crusher with auto dust collecting is recommended.
If you need very big capacity, a cyclone is highly recommended.
Warehouse look:
Factory look:
If you want to send inquriy to me about our powder grinding machine , could you please tell me?
1) What material you want to grind, is it dry? what is the size of feed material ?
2) What capacity you expect by one JB spice mill ? (kg/h)
3) What mesh or mm or micron(size) of the powder you want?
4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...
(We only provide 3P, because our machines are all for industrial use,not for family.)
5) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.
Then our communication will be more efficient.
