Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | After-sales Service Provided: | Field Installation, Commissioning And Training, Engineers Available To Service Machinery Overseas |
---|---|---|---|
Voltage: | 220-660V | Application: | Chemical, Food And Pharmaceutical Line |
Material: | Stainless Steel 304 Or 316 | Port: | SHANGHAI CHINA |
High Light: | v blender machine,v type powder mixer |

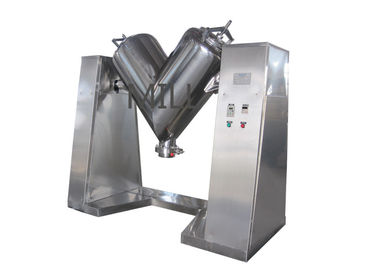

Stainless steel industrial powder mixer V Powder mixing machine
Main Usage
This mixer is used for mixing dry granules materials for pharmacy or other relative industries.
Specialty
Unique structure of mixing cylinder,high mixing effciency,free of dead corner,and even mixing.
Technical Parameters
Model | Main Structural Dimensions(mm) | Capacity | Maximum mixing amount | speed | Machine weight | Total power | ||||||
L | W1 | W2 | H1 | H2 | H3 | DN | L | KG | Rpm/min | KG | KW | |
JB-180 | 1780 | 800 | 1220 | 1700 | 650 | 1870 | 150 | 180 | 90 | 3-12 | 300 | 1.5 |
JB-300 | 1900 | 900 | 1450 | 1850 | 650 | 2100 | 150 | 300 | 150 | 3-12 | 500 | 2.2 |
JB-500 | 2500 | 1220 | 1600 | 2250 | 650 | 2250 | 200 | 500 | 250 | 3-12 | 800 | 3 |
JB-1000 | 3050 | 1650 | 2190 | 2500 | 650 | 2840 | 200 | 1000 | 500 | 3-12 | 1200 | 4 |
JB-1500 | 3350 | 1650 | 2350 | 2980 | 650 | 3000 | 200 | 1500 | 750 | 3-12 | 1500 | 5.5 |
JB-2000 | 3800 | 1900 | 2600 | 3050 | 650 | 3250 | 200 | 2000 | 1000 | 3-12 | 1900 | 7.5 |
JB-2500 | 3990 | 1900 | 2850 | 3200 | 650 | 3500 | 250 | 2500 | 1250 | 3-12 | 2400 | 11 |
JB-3000 | 4650 | 2200 | 3050 | 3400 | 650 | 3700 | 250 | 3000 | 1500 | 3-12 | 3100 | 15 |
JB-4000 | 4950 | 2200 | 3250 | 3600 | 650 | 3900 | 250 | 4000 | 2000 | 2-8 | 4200 | 18.5 |
Our service
