Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support, Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Voltage: | 220-660 V | Range Of Spindle Speed(r.p.m): | 2000 - 6000 |
| Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing | Output Size (mesh): | 60 - 320 |
| Material: | Stainless Steel | Port: | Shanghai China |
| Type: | Pulverizer | Dimension(l*w*h): | Customizable |
| High Light: | powder grinding machine,super fine powder grinder |
||
CE&ISO Turmeric Spice Fine Powder Grinding Machine With Cooling System
Main Usage
This machine is made up of three parts: main machine, auxiliary machine and electric control box.
It has properties of wind selection, having no sieve or net, and an even granularity of the processed material.
The production process going on continuously and the machine can undertake grinding of chemical products, foodstuff, medicine, medicament, cosmetics, plastic, dyestuff, resin, grain, etc.
Features
1.The design is compact and structure is reasonable. The material is equipped with an internal classification mechanism so that grinding and classification are carried out simultaneously, thus reducing energy consupmtion.
2.Equipped with a blower, which dissipates the heat in the machine continuously, the machine is fit for the grinding of thermal sensitive materials.
3.Having a great adaptability and narrow granularity distribution. The granularity of the product is even and fineness may reach 80-320 mesh.
4.Regulate the speed of the classifier or amount of the air without stopping the machine and evenly distributed products of the required granularity will be obtained.
5.The top cover of the main machine is opened with pneumatic springs and the body is constructed in such a way that it may be opened to two sides so that no hindrance will be met in cleaning and servicing the internal parts.
6.The main grinding parts are made of high-grade alloy tool steel so that the service life or change cycle of the wear parts is greatly lengthened.
Technical Data
| Model | Main Structural Dimensions(mm) | Capacity | Input Particle Size | Output Particle Size | Speed | Machine weight | Total power | ||||||
| L1 | L2 | H1 | H2 | H3 | H4 | W1 | Kg/H | mm | mm | rpm | Kg | KW | |
| JB-15 | 3950 | —— | 2640 | 850 | 650 | 350 | 1450 | 10-150 | <6 | 60-320 | 1100 | 600 | 13.5 |
| JB-20 | 4300 | 5900 | 2800 | 850 | 650 | 350 | 1450 | 15-200 | <10 | 60-320 | 1300 | 5400 | 21 |
| JB-30 | 5250 | 7050 | 3200 | 950 | 650 | 350 | 1550 | 50-600 | <12 | 60-320 | 2000 | 3800 | 46 |
| JB-60 | 6100 | 8100 | 3700 | 1050 | 650 | 400 | 2000 | 100-1000 | <15 | 60-320 | 3800 | 2900 | 84 |
| JB-80 | 7200 | 9200 | 4250 | 1150 | 650 | 400 | 2300 | 120-1800 | <15 | 60-320 | 5100 | 2500 | 123 |
| JB-100 | 7900 | 10100 | 4500 | 1250 | 650 | 400 | 2500 | 150-2000 | <20 | 60-320 | 7400 | 2000 | 183 |

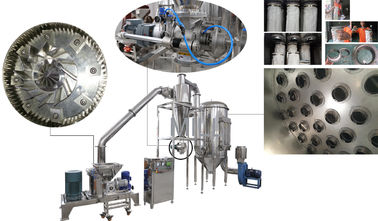

Pictuers
Our service
Our company locates at Wuxi city, very near Shanghai City and it only takes 30 minutes to get to our city by train from Shanghai.
1) We are golden supplier on alibaba with a history of more than 10 years.
And our factory’s history is more than 15 years.
2) We have CE certificate, ISO,BV...etc.
3) Each year,we takes part in a lot of Expos ,for example: FIC, CPHI, API...etc
FAQ:
If you want to send inquriy to me about Stainless steel commercial Spice pulverizer machine,grinding pulverizer machine from China, could you please tell me?
1) What material you want to grind, is it dry? what is the size of feed material ?
2) What capacity you expect by spice grinding machine? (kg/h)
3) What mesh or mm or micron(size) of the powder you want?
4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...
(We only provide 3P, because our machines are all for industrial use,not for family.)
5) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.
Then our communication will be more efficient.
