Product Details:
Payment & Shipping Terms:
|
Application: | Powder, Medicine Processing, Chemicals Processing, Food Processing | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
---|---|---|---|
Material: | Stainless Steel | Warranty: | 1 Year |
Port: | Shanghai China | Name: | Moveable Vacuum Bin |
High Light: | powder conveying systems,vacuum conveyor systems |
IBC moveable vacuum bin for automatic conveyor stainless steel powder bin blender
Application
The storage equipment in the bulk material handling mechanization system mainly functions as intermediate storage, system buffering and equalization operations. The bin device consists of a bin, feeding and discharging materials.
Technical Data
Model | Main Structural Dimensions(mm) | Volume | Wall Thickness | ||||
H1 | H2 | W | D | DN | L | t | |
JB-200 | 1097 | 158 | 594 | 100 | 150 | 200 | 2.5 |
JB-300 | 1168 | 204 | 794 | 125 | 200 | 300 | 2.5 |
JB-400 | 1290 | 165 | 794 | 125 | 200 | 400 | 2.5 |
JB-500 | 1331 | 229 | 994 | 125 | 200 | 500 | 2.5 |
JB-600 | 1366 | 151 | 994 | 125 | 200 | 600 | 2.5 |
JB-800 | 1545 | 118 | 994 | 125 | 200 | 800 | 2.5 |
JB-1000 | 1586 | 168 | 1194 | 150 | 250 | 1000 | 2.5 |
JB-1500 | 1868 | 99 | 1194 | 150 | 250 | 1500 | 3 |
JB-2000 | 2238 | 113 | 1194 | 150 | 250 | 2000 | 3 |

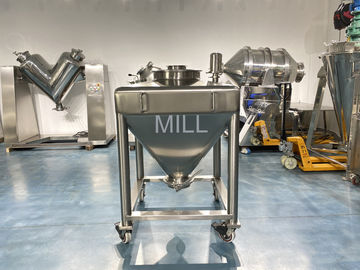

Detail Pictures of IBC moveable vacuum bin for automatic conveyor stainless steel powder bin blender
